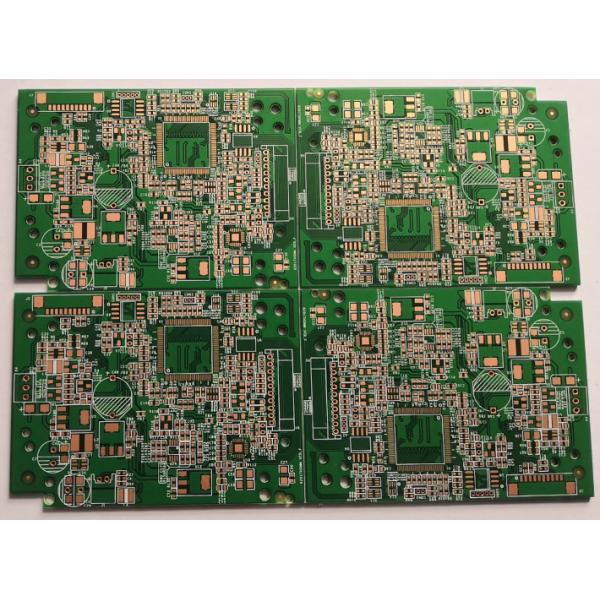

High Frequency Multilayer PCB Board Engineering Pretreatment Lead Free High Precision
Key Specifications/Special Features:
| Layer : | 4 Layers |
| Base Material : | FR4 TG150 |
| Copper Thickness : | 2 / 2 / 2 / 2 oz |
| Board Thickness : | 1.20 mm |
| Min. Hole Size : | 6 mil, 0.15mm |
| Min. Line Width : | 5 / 5 mil |
| Min. Line Spacing : | 5 / 5mil |
| Surface Finishing : | HAL LEAD FREE |
Advantages :
No MOQ, 14 years of PCB turnkey services
Quick turn, prototype, low & medium & high volume
OEM services provide
ISO 9001-, ISO 14001-, ISO/TS16949, ISO 13485, IATF16949, OHSAS18001 certified
100% E-test, visual, AOI inspection, including X-ray, 3D microscope
Fast response within 24 hours
Technical Capability:
| ITEMS | Capability |
| Max. layer count | 28L |
| Min. line widty | 0.08mm |
| Min. line spacing | 0.08mm |
| Min. hole size | 0.15mm |
| Board thickness | 0.4-6.0mm |
| Max. boardsize | 520×620mm |
| (PTH) Hole size tolerance(PTH) | ±0.075mm |
| (NPTH) Hole size tolerance(NPTH) ) | ±0.05mm |
| Holeposition tolerance(Routing) | ±0.1mm |
| Outline tolerance(Punching) | ±0.1mm |
FAQ:
2. What kinds of boards can ACCPCB process?
Common FR4, high-TG and halogen-free boards, Rogers, Arlon, Telfon, aluminum/copper-based boards, PI, etc.
3. What data are needed for PCB production?
PCB Gerber files with RS-274-X format.
4. What’s the typical process flow for multi-layer PCB?
Material cutting → Inner dry film → inner etching → Inner AOI → Multi-bond→ Layer stack up Pressing → Drilling → PTH → Panel Plating → Outer Dry Film → Pattern Plating → Outer etching → Outer AOI → Solder Mask → Component Mark → Surface finish → Routing → E/T → Visual Inspection.
5. How many types of surface finish ACCPCB can do?
the leader has the full series of surface finish, such as: ENIG, OSP, LF-HASL, gold plating (soft/hard), immersion silver, Tin, silver plating, immersion tin plating, carbon ink and etc. .. OSP, ENIG, OSP + ENIG commonly used on the HDI, we usually recommend that you use a client or OSP OSP + ENIG if BGA PAD size less than 0.3 mm.
6. What are the main factors which will affect the price of PCB?
Material;
Surface finish;
Board thickness, Copper thickness;
Technology difficulty;
Different quality criteria;
PCB characteristics;
Payment terms;
6. How do ACCPCB ensure quality?
Our high quality standard is achieved with the following.
1.1 The process is strictly controlled under ISO 9001:2008 standards.
1.2 Extensive use of software in managing the production process
1.3 State-of-art testing equipments and tools. E.g. Flying Probe,e-Testing, X-ray Inspection, AOI (Automated Optical Inspector) .
1.4.Dedicated quality assurance team with failure case analysis process
